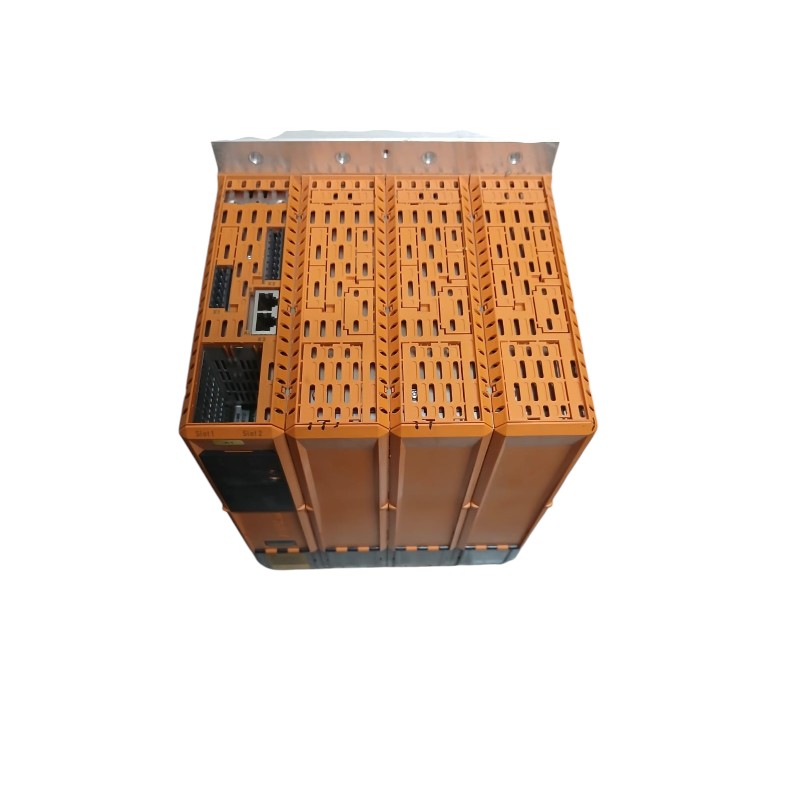

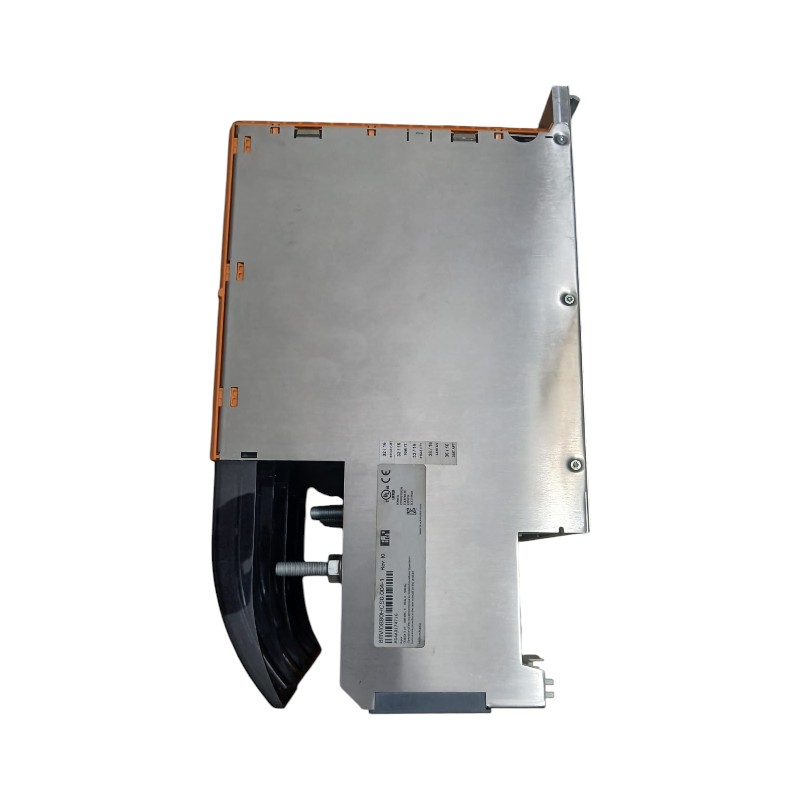

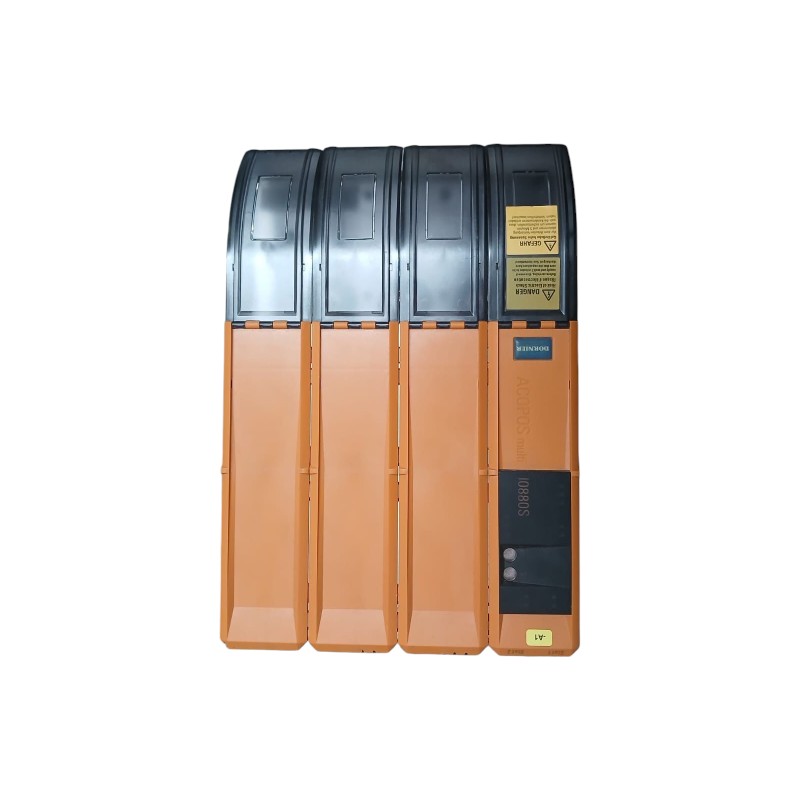

Dornier 8BVI0880HCS0.004-1,B&R, SERVO DRIVES
Price range: ৳ 220,000.00 through ৳ 380,000.00
Dornier For DDS and Ft model
Material number:
8BVI0880HCS0.004-1
Description:
- Integrated uncontrolled standstill and safe stop
- Integrated connection for motor holding brake and temperature sensor
- 2 slots for ACOPOSmulti plug-in modules
ACOPOSmulti inverter module, 88 A, AS, cold plate or pass-through mounting
Description
| B&R ID code | 0xA64A |
| Support | |
| Dynamic node allocation (DNA) | Yes |
| Cooling and mounting type | Cold plate or pass-through mounting |
| Slots for plug-in modules | 2 |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| Functional safety | Yes |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
DC bus connection
| Voltage | |
| Nominal | 750 VDC |
| Continuous power consumption | 65 kW |
| Power dissipation depending on switching frequency | |
| Switching frequency 5 kHz | [0.03 * IM² + 7.9 * IM + 90] W |
| Switching frequency 10 kHz | [0.11 * IM² + 11 * IM + 185] W |
| Switching frequency 20 kHz | [0.17 * IM² + 27 * IM + 310] W |
| DC bus capacitance | 1980 µF |
| Variant | ACOPOSmulti backplane |
24 VDC power supply
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 32.9 µF |
| Max. power consumption | 27 W + PSLOT1 + PSLOT2 + P24 V Out + PHoldingBrake |
| Variant | ACOPOSmulti backplane |
24 VDC output
| Quantity | 2 |
| Output voltage | |
| DC bus voltage (UDC): 260 to 315 VDC | 25 VDC * (UDC/315) |
| DC bus voltage (UDC): 315 to 800 VDC | 24 VDC ±6% |
| Fuse protection | 250 mA (slow-blow) electronic, automatic reset |
Motor connection
| Quantity | 1 |
| Continuous power per motor connection | 64 kW |
| Continuous current per motor connection | 88 Aeff |
| Reduction of continuous current depending on switching frequency and mounting type | |
| Switching frequency 5 kHz | |
| Cold plate mounting | 1.9 A/K (starting at 58°C) |
| Pass-through mounting | 1.82 A/K (starting at 40°C) |
| Switching frequency 10 kHz | |
| Cold plate mounting | 1.36 A/K (starting at 27°C) |
| Pass-through mounting | 0.88 A/K (starting at -12°C) |
| Switching frequency 20 kHz | |
| Cold plate mounting | 0.75 A/K (starting at -37°C) |
| Pass-through mounting | 0.54 A/K (starting at -106°C) |
| Reduction of continuous current depending on installation elevation | |
| Starting at 500 m above sea level | 8.8 Aeff per 1000 m |
| Peak current | 176 Aeff |
| Nominal switching frequency | 5 kHz |
| Possible switching frequencies | 5 / 10 / 20 kHz |
| Insulation stress of the connected motor per IEC TS 60034-25:2004 | Limit value curve A |
| Protective measures | |
| Overload protection | Yes |
| Short-circuit and ground fault protection | Yes |
| Max. output frequency | 598 Hz |
| Variant | |
| U, V, W, PE | M8 threaded bolts |
| Shield connection | Yes |
| Connection cross section range | |
| Flexible and fine-stranded wires | — |
| Terminal cable cross section dimension of shield connection | 12 to 50 mm |
| Max. motor line length depending on switching frequency | |
| Switching frequency 5 kHz | 25 m |
| Switching frequency 10 kHz | 25 m |
| Switching frequency 20 kHz | 25 m |
Motor holding brake connection
| Quantity | 1 |
| Output voltage | 24 VDC +5.8% / -0% |
| Continuous current per connection | 4.2 A |
| Max. internal resistance | 0.15 Ω |
| Extinction potential | Approx. 30 V |
| Max. extinction energy per switching operation | 3 Ws |
| Max. switching frequency | 0.5 Hz |
| Protective measures | |
| Overload and short-circuit protection | Yes |
| Open-circuit monitoring | Yes |
| Undervoltage monitoring | Yes |
| Response threshold for open-circuit monitoring | Approx. 0.5 A |
| Response threshold for undervoltage monitoring | 24 VDC +0% / -4% |
Enable inputs
| Quantity | 2 |
| Circuit | Sink |
| Electrical isolation | |
| Input – Inverter module | Yes |
| Input – Input | Yes |
| Input voltage | |
| Nominal | 24 VDC |
| Maximum | 30 VDC |
| Input current at nominal voltage | Approx. 30 mA |
| Switching threshold | |
| Low | <5 V |
| High | >15 V |
| Switching delay at nominal input voltage | |
| Enable 1 → 0, PWM off | Max. 20.5 ms |
| Enable 0 → 1, ready for PWM | Max. 100 µs |
| Modulation compared to ground potential | Max. ±38 V |
| OSSD signal connections | Permitted Max. test pulse length: 500 µs |
Trigger inputs
| Quantity | 2 |
| Circuit | Sink |
| Electrical isolation | |
| Input – Inverter module | Yes |
| Input – Input | Yes |
| Input voltage | |
| Nominal | 24 VDC |
| Maximum | 30 VDC |
| Switching threshold | |
| Low | <5 V |
| High | >15 V |
| Input current at nominal voltage | Approx. 10 mA |
| Switching delay | |
| Rising edge | 52 µs ±0.5 µs (digitally filtered) |
| Falling edge | 53 µs ±0.5 µs (digitally filtered) |
| Modulation compared to ground potential | Max. ±38 V |
Temperature sensor connection
| Quantity | 1 |
| Resistance range | 500 Ω to 5 kΩ |
