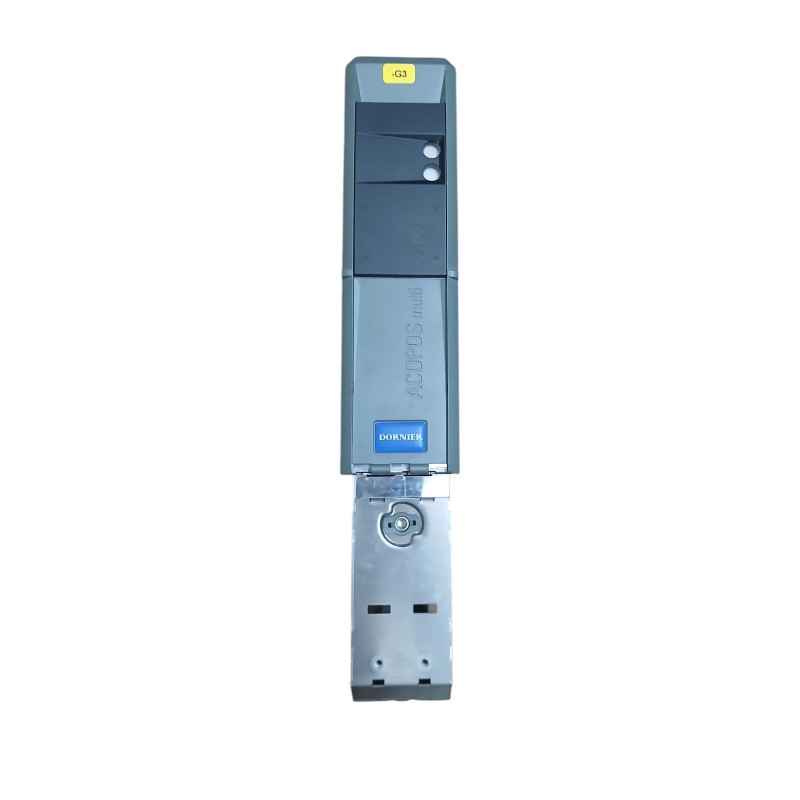

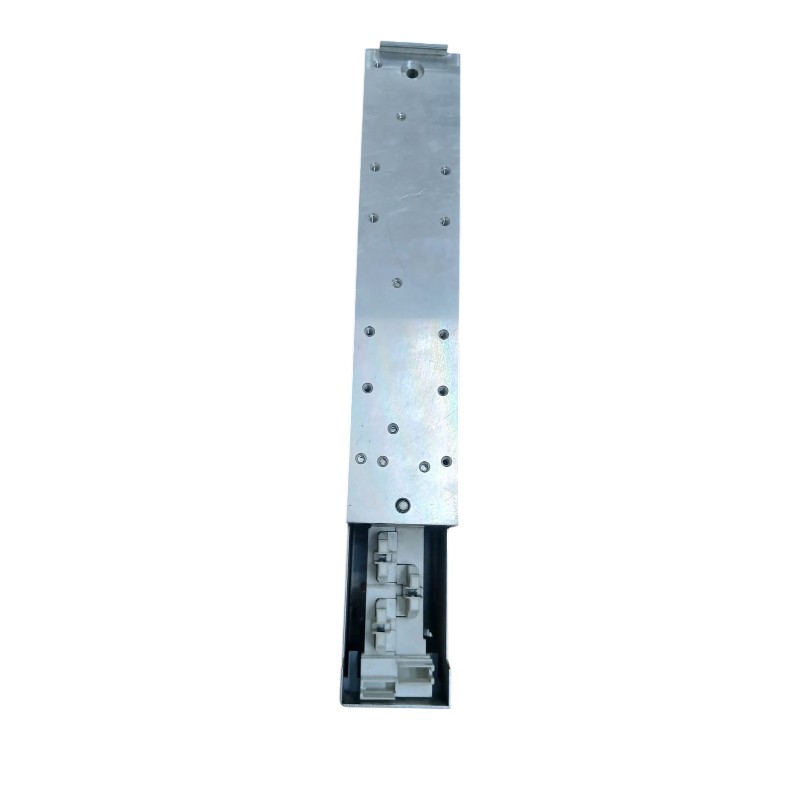

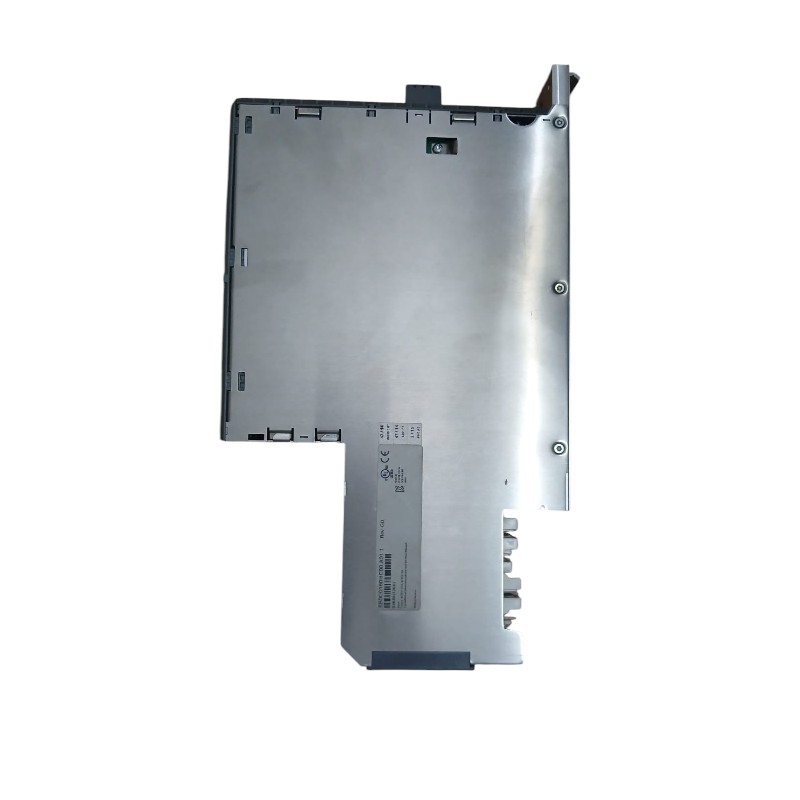

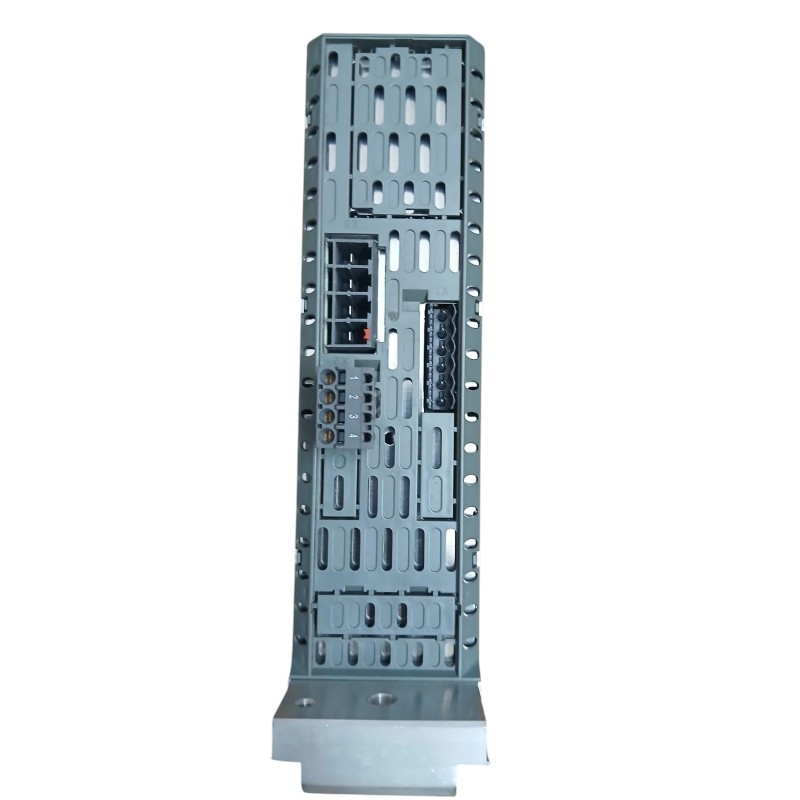

Dornier Power supply 8B0C0160HC00.A01-1
Price range: ৳ 460,000.00 through ৳ 620,000.00
Dornier power supply for DDS FT model G1
Description
Material number:
8B0C0160HC00.A01-1Description:
- Connections for the power supply of 42 V devices
- Extensive protective measures
Technical Data.
| Voltage | |
| Nominal | 750 VDC |
| Workspace | 350 to 800 VDC |
| Continuous power consumption | Max. 880 W |
| Power dissipation with continuous power | 25 W (0% continuous power) 36 W (50% continuous power) 70 W (100% continuous power) |
| DC bus capacitance | 220 nF |
| Variant | ACOPOSmulti backplane |
24 VDC internal system power supply
| Variant | ACOPOSmulti backplane |
42 VDC output
| Continuous power | 800 W |
| Output voltage | |
| DC bus voltage (UDC): 260 to 315 VDC | 0 V |
| DC bus voltage (UDC): 315 to 800 VDC | 42 VDC |
| Continuous current | 16 ADC |
| Reduction of continuous power at ambient temperatures starting at 40°C | No reduction |
| Reduction of continuous power depending on installation elevation | |
| Starting at 500 m above sea level | 80 W per 1000 m |
| Reduction of continuous power depending on cooling method | No reduction |
| Startup delay | Max. 1 s |
| Startup time | Approx. 5 to 20 ms |
| Residual ripple | Typ. 50 mVSS |
42 VDC Out
| Output voltage | |
| DC bus voltage (UDC): 260 to 315 VDC | 0 V |
| DC bus voltage (UDC): 315 to 800 VDC | 42 VDC ±6% |
| Peak current (<4 s) over total DC bus voltage operating range | 21 ADC |
| Protection of 42 VDC Out 1 output | 16 A (slow-blow) electronic, automatic reset |
| Protection of 42 VDC Out 2 output | 3 A (slow-blow) electronic, automatic reset |
| Protective measures | |
| No-load proof | Yes |
| Overload-proof | Yes |
| Short-circuit proof | Yes |
| Feedback protection | 42 VDC Out1: Max. 50 VDC (also when the power is switched off) 42 VDC Out2: Max. 50 VDC (also when the power is switched off) |
| Overtemperature protection | Yes |
| Dielectric strength to ground | ±96 VDC |
| Output/Input isolation | SELV / PELV requirements |
| Variant | |
| 42 VDC, COM | Connector |
